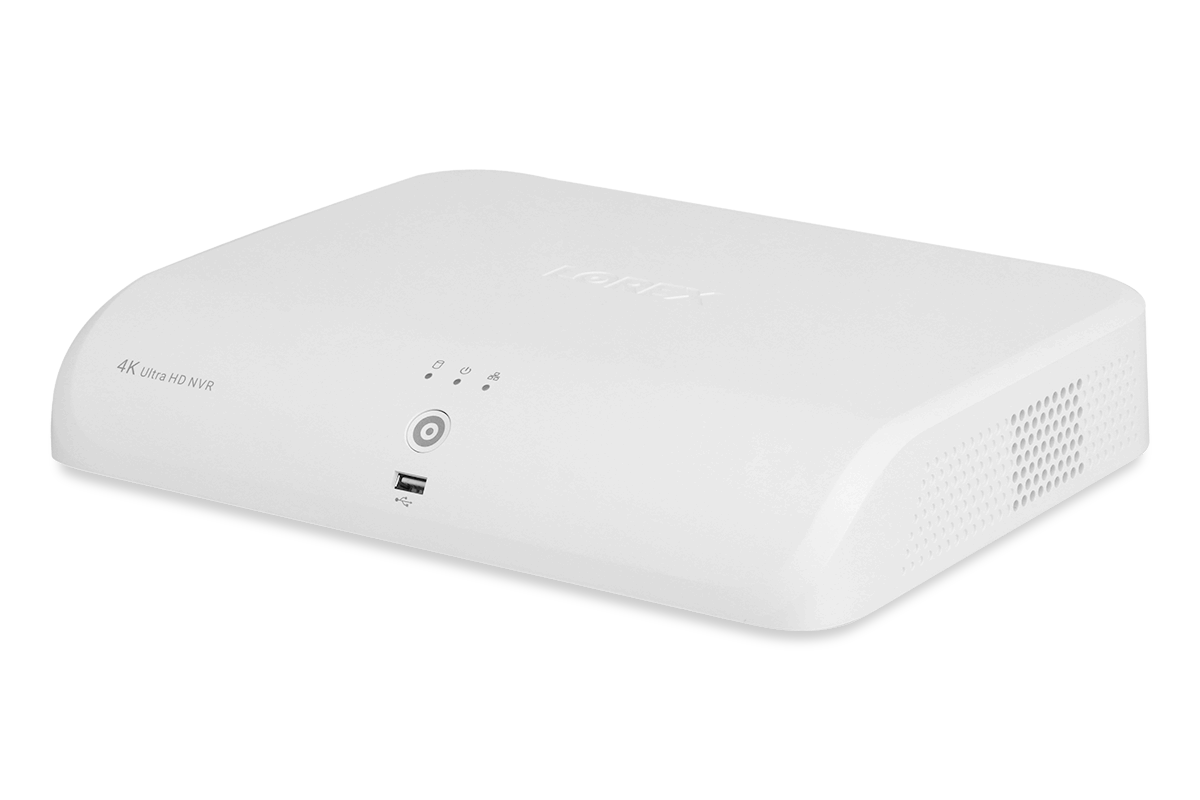

Create a tailored security system by combining both wired and Wi-Fi security cameras with this 16-channel (8 wired and 8 Wi-Fi) 4K Fusion Network Video Recorder (NVR). With support for all of the latest detection and deterrence camera features, you will always know what’s happening around your property and stop potential events before they happen. The 2TB local storage also means ample private storage with no monthly fees.
16
CHANNELS
8 × Wired + 8× Wi-Fi
4K
RESOLUTION
Supports 4K Ultra HD resolution
2TB
HARD DRIVE
Expandable up to 8TB HDD
See the Finest Detail
Record 4K video on every channel. 4K resolution provides the highest quality video and digital zooms, which gives you the best chance to decipher distant details.
*Detection types need to be supported by the camera.
Smart home compatibility
Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen, or download the Lorex app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.
*Requires Gen 4 or newer Apple TV with support for App Store



Panic button
Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras.

Free Local Storage, No Monthly Fees
Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.
What's Included?


Dimensions (W×D×H): 12.9" x 9.6" x 2.1" (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)
- Hard Drive LED
- Power LED
- Network LED
- USB Ports
- Info / Panic Button
- Power Port
- PoE Ports
- LAN Port
- VGA Port
- Audio In / Out
- HDMI Port
Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
Product Compatibility
Product Support
N846 Series - 4K Fusion Wired NVR System
